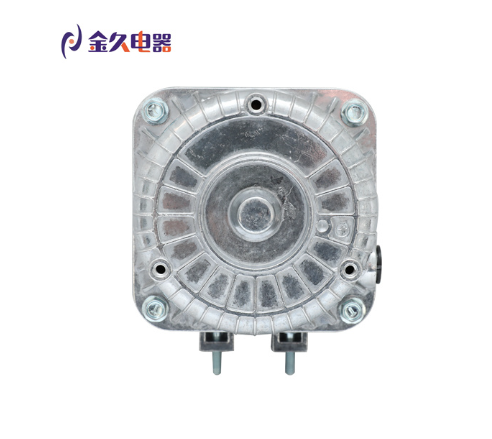

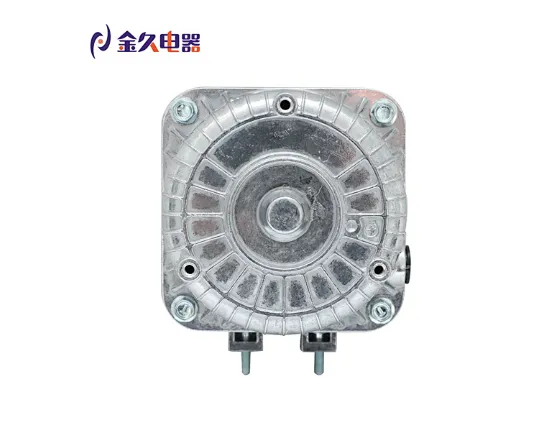

YCF Capacitor Motor are single-phase, 4-pole shaded pole motors with rated voltages of 220V-240V, 50/60H or 110V-120V, 60HZ. Widely used in condensers, radiators, evaporators and other refrigeration equipment and heater equipment.
1. The output power of YCF Capacitor Motor ranges from 1W to 34W, and the output power of the motor is adjusted by changing the core thickness and winding parameters.
2. The insulation grade of YCF Capacitor Motor is B grade and the protection grade is IP42. Motors with a protection class of IP44 can be produced according to the customer.
3. YCF Capacitor Motor with output power below 10W adopts impedance protection, and the output power greater than 10W adopts 125-150 °C thermal protector.
4. The applicable ambient temperature is -30 °C-50 °C.
5. The conventional motor adopts oil bearings, it is recommended that customers adopt horizontal mounting, and ball bearing motors can be produced according to customers.
6. The average life of the motor is more than 20,000 hours.
7. YCF Capacitor Motor has passed CE and CCC certification.
Before the motor is used, the electrode ground wire must be effectively connected to the external grounding device.
