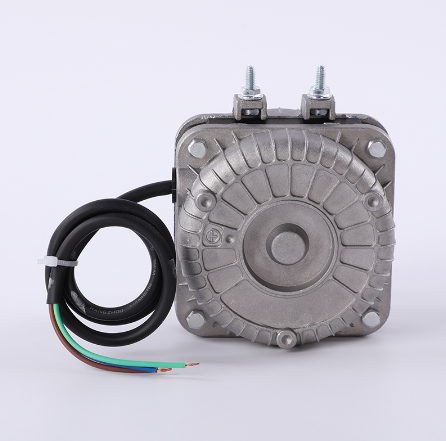

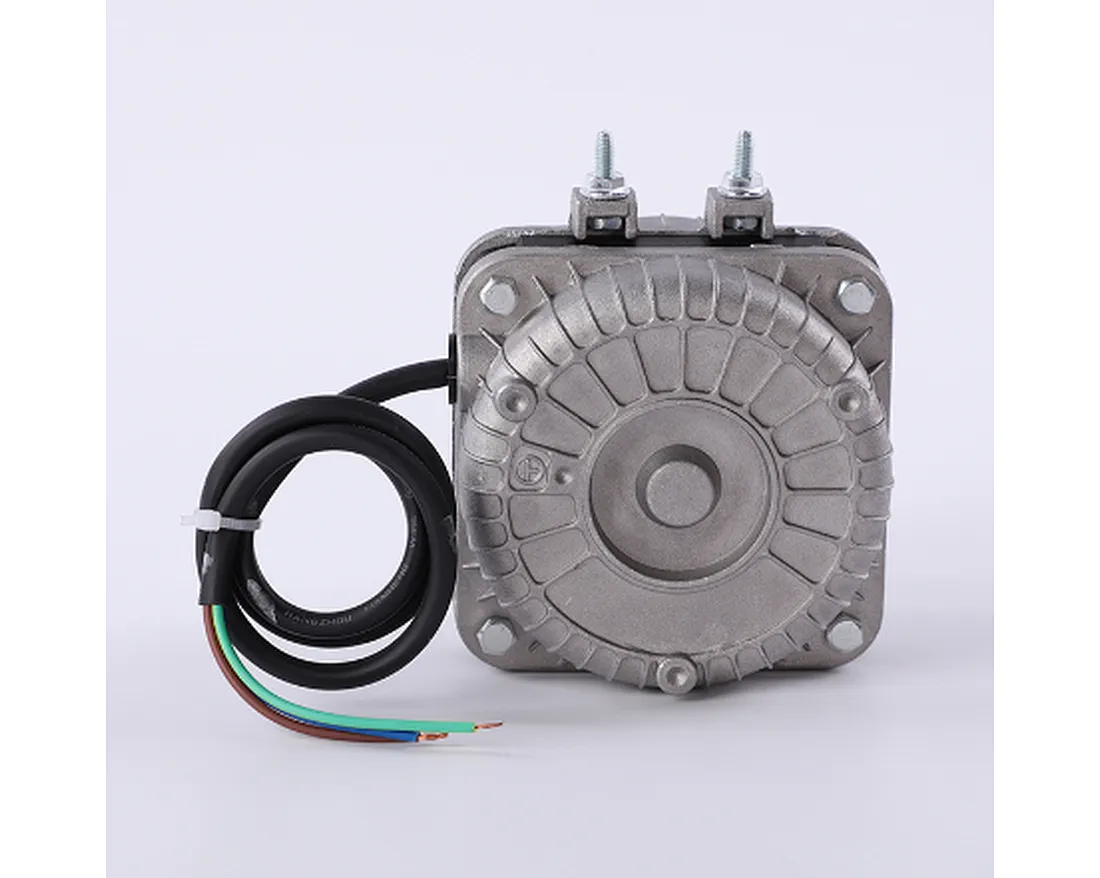

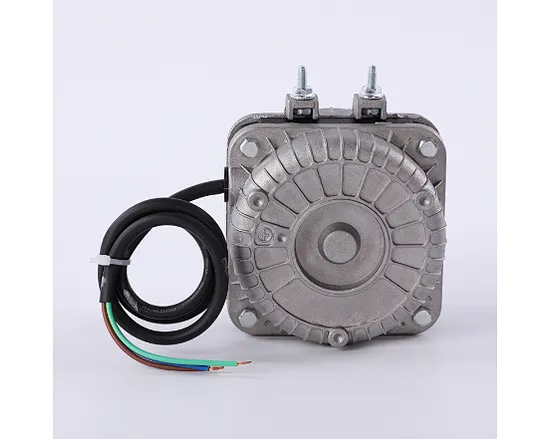

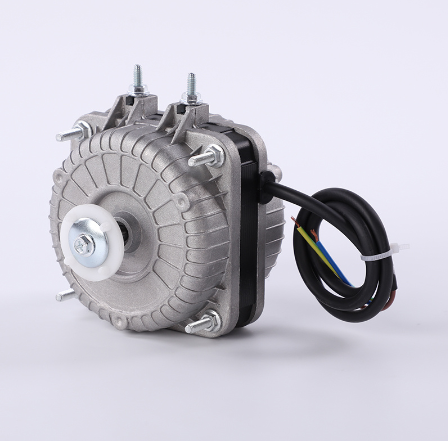

Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not The YZF series motors are single-phase, 4-pole shaded pole motors with rated voltages of 220V-240V, 50/60H or 110V-120V, 60HZ. Widely used in condensers, radiators, evaporators and other refrigeration equipment and heater equipment.
1. The output power of YZF series motors ranges from 1W to 34W, and the output power of the motor is adjusted by changing the core thickness and winding parameters.
2. The insulation grade of YZF series motors is B grade and the protection grade is IP42. Motors with a protection class of IP44 can be produced according to the customer.
3. YZF series motors with output power below 10W adopts impedance protection, and the output power greater than 10W adopts 125-150 °C thermal protector.


4. The applicable ambient temperature is -30 °C-50 °C.
5. The conventional motor adopts oil bearings, it is recommended that customers adopt horizontal mounting, and ball bearing motors can be produced according to customers.
6. The average life of YZF series motors is more than 20,000 hours.
7. YZF series motors has passed CE and CCC certification.
Before the motor is used, the electrode ground wire must be effectively connected to the external grounding device.
If you are interested in our products, please feel free to consult us. Your affirmation of us is our greatest joy.
